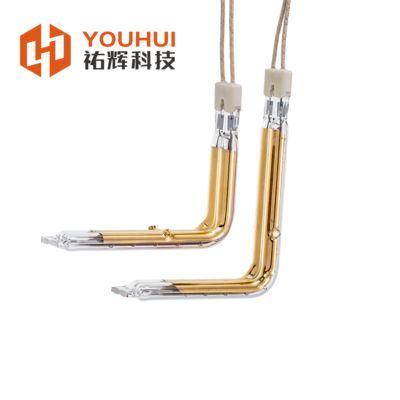

L Shape Gold Coated Infrared Heating Element Tube with Visible Light Transmission >93% and UV Light Transmission >85% for Industrial Applications

L Shape Gold Coated Infrared Heating Element Tube with Visible Light Transmission >93% and UV Light Transmission >85% for Industrial Applications

Nom De Marque:	UVIR
Numéro De Modèle:	EEXC6102
Nombre De Pièces:	Négociable
Prix:	Négociable
Conditions De Paiement:	LC, D/A, D/P, T/T, Western Union, MoneyGram

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine:

Chine

Certification:

CE & ROHS

Tension (v):

45-480v, personnalisé

Service de solutions d'éclairage:

Éclairage et conception de circuits

Pouvoir:

150-6000w, personnalisé

Tube de quartz:

11 * 23 mm

Forme:

Revêtement:

Détails d'emballage:

Chaque lampe dans un cylindre. Alors dans une boîte professionnelle de contreplaqué

Mettre en évidence:

Visible Light Transmission >93% Infrared Heating Element Tube

UV Light Transmission >85% Halogen Heater Tube

Heat Resistant Quartz Lamp

Description du produit

L Shape Short Wave 150-6000W Infrared Halogen Lamp for Automotive Industry

L Shape Gold Halogen Heater Tube Heat Resistant Quartz Lamp designed for demanding industrial applications.

Product Specifications

Attribute	Value
Voltage (V)	45-480V, Customized
Lighting solutions service	Lighting and circuitry design
Power	150-6000W, Customized
Quartz Tube	11*23mm
Shape	L
Coating	Gold

Why Choose Reflector Coating

All of our emitters can be coated with a layer of gold or ceramic as reflectors. The gold/ceramic coating concentrates heat, increasing heat output effectiveness. Coated emitters are highly economical, converting nearly all electrical power into heat.

For emitters with high watt density or surface temperature above 800°C, we recommend ceramic coating as reflector (temperature resistance up to 1000°C). We offer 180° (half-tube) coating and custom degrees upon request.

Key Advantages

High purity (SiO₂ > 99.99%)
Working Temperature: 1250℃; Soften Temperature: 1730℃
Excellent thermal stability
Acid-proof and alkali-proof
Superior electrical insulator
Transmission: Visible light >93%, UV light >85%

Technical Specifications

UVIR No.	EEXC6102
Voltage (V)	45-480V, Customized
Wattage (W)	150-6000W, Customized
Quartz Tube (mm)	11*23
Shape	L
Reflector	GOLD

Application Fields

Infrared Heating For Plastics Process

IR drying of coatings on plastics
IR stretching or shrinking plastics
IR Heating For Plastic Packaging
IR heating for blow moulding of PET bottles

Infrared Heating For Photovoltaic Industry

IR heating for string soldering
IR preheating for sputtering processes

Infrared Heating For Printing Industry

IR curing ink on cloth
IR drying for inkjet-based CTP plates
IR drying of printing products (e.g., banners machine)

Infrared Heating For Food And Chemical Industry

IR heating for disinfection of tableware
IR heating of chicken and vegetables
IR heating of natural herbal medicine
IR heating for removing snow and ice

Infrared Heating For Glass Industry

IR preheating of car glass
IR drying of coatings on glass
IR heating for manufacturing and cutting laminated glass

Infrared Heating For Textiles Industry

IR drying of coatings on textiles
IR heating for laminating of fabrics

Infrared Heating For Electronic Industry

Coatings on electronic components
The aging of the electronic components

OEM Services

We advise customers in selecting the right heat lamp for specific applications. Our Technical Department can design lamps based on your technical specifications.

We produce various sizes and types of heat lamps according to customer requirements. Providing drawings enables us to create samples for you.

Frequently Asked Questions

Can I get some samples?

We are happy to offer samples for checking and testing.

Do you have any MOQ limit?

Low MOQ - 1 piece for sample checking is available.

What about the lead time?

15-20 days after receiving your payment.

How does your factory do regarding quality control?

"Quality is priority." We maintain strict quality control from beginning to end. Our factory is certified with CE, ISO9001, RoHS, and SGS.

If the parameters don't suit your needs, please contact us. Our professional team will provide expert knowledge and drawings for you!
