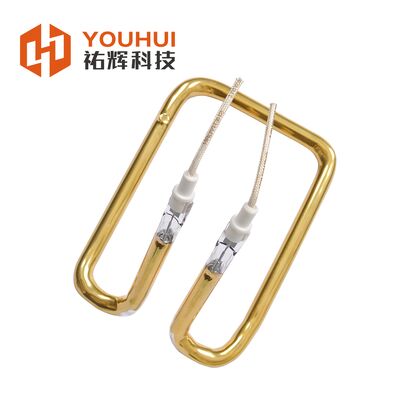

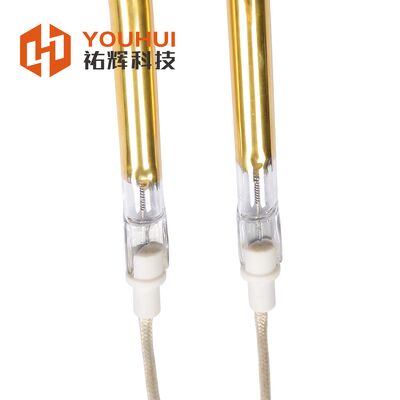

150-6000W Infrared Heating Element Tube with 5000-20000h Lifespan and 85% Heat Efficiency for Industrial Applications

150-6000W Infrared Heating Element Tube with 5000-20000h Lifespan and 85% Heat Efficiency for Industrial Applications

Nom De Marque:	UVIR
Nombre De Pièces:	Négociable
Prix:	Négociable
Conditions De Paiement:	LC, D/A, D/P, T/T, MoneyGram, Western Union

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine:

Chine

Certification:

CE & ROHS

Nom du produit:

Lampe de chauffage infrarouge

Source de lumière:

Filaments en tungstène

Efficacité:

Plus de 85% d'efficacité thermique de pleine puissance

Durée de vie (heures):

5000-20000H

Couleur:

Clair, blanc, or, rubis

format de tube de quartz:

8 * 18 11 * 23 15 * 33 mm

Pouvoir:

150-6000w

Tension:

45-480v

Détails d'emballage:

Chaque lampe dans un cylindre. Alors dans une boîte professionnelle de contreplaqué

Mettre en évidence:

150-6000W Infrared Heating Element Tube

5000-20000h Lifespan Halogen IR Lamp

85% Heat Efficiency Infrared Heating Lamp

Description du produit

150-6000W Infrared Heating Element Tube

Halogen IR lamp designed for industrial heating applications with high efficiency and customizable specifications.

Product Specifications

Attribute	Value
Product name	Infrared Heating Lamp
Light source	Tungsten filament
High efficiency	More than 85% heat efficiency of full power
Lifespan	5000-20000 hours
Color	Clear, White, Gold, Ruby
Quartz tube format	818 1123 15*33mm
Power	150-6000W
Voltage	45-480V

Infrared Heat Lamp Advantages

Long serving life: Over 5000 hours
Fast Reaction Time: About 1-2 seconds to achieve full power output
Energy Saving: Gold and Ceramic coating maximize reflect Infrared radiation up to 90%
Environmentally Friendly: Nontoxic, odorless, and no risk of contamination

Key Features

Manufactured from imported high-end quartz tube
High efficiency with more than 85% heat efficiency at full power
Effective reflective layer (gold or non-organic) for concentrated radiation energy
No surface corrosion or dropping off concerns
Quick controllable heat with adjustable heating time
Clean and odorless operation
Customizable wavelength, dimensions, and filaments
Energy efficient with less consumption and smaller footprint

Technical Details

Product name	Infrared Lamp
Type	3D shape
Power	150-6000W
Voltage	45-480V
Material	Quartz Tube
OEM/ODM	Custom voltage, wattage, length, base, and cables available

Industrial Applications

Plastics Processing: IR drying, stretching, shrinking, and packaging
Photovoltaic Industry: String soldering and sputtering preheating
Printing Industry: Ink curing and drying processes
Food & Chemical Industry: Disinfection, food heating, and snow removal
Glass Industry: Preheating, coating drying, and glass cutting
Textiles Industry: Fabric coating drying and laminating
Electronic Industry: Component coating and aging processes

For custom specifications not listed, please contact us. Our professional team can provide technical knowledge and drawings to meet your requirements.
